EasyTerm FW
Current version 2.3.0 (21.04.2025)

Changes from previous version:
Features
  • MQTT messages via remote control are mirrored to HOST UART by default (can be disabled using SYStem command)
  • Try to publish not yet published remote control replies before entering WIFI sleep
  • Improved WIFI error handling
  • Add WIFI module wakeup method without need to connect EN signal via cable (!needs WIFI module FW >=4.2 (HERE)!)
  • Add PERSIST_SESSION parameter to ConnectMqttBroker command (ideal low-power capability with MQTT communication with periodic WIFI sleep)
  • Add QOS parameter to RemoteControlTopics command (ideal low-power capability with MQTT control with periodic WIFI sleep)
  • GPIO command parameters like PinPull, OutputState and OutputType are processed even when GPIO is in unrelated Mode (disabled etc...) thus allowing to be pre-configured prior Mode change to prevent transient glitch due to improper GPIO initialization order
  • Improved WIFI error handling
  • Add WIFI debug mode via specific commands
  • Add automatic MQTT broker reconnect after WIFI sleep (and remote control resubscription when PERSIST_SESSION was disabled)
  • Add PrintScreenImage command
API changes
  • Refactor several SYStem command parameters for API consistency
  • Add PrintScreenImage command
Bugfixes
  • Fix MQTT flow
  • Fix not hanlder acknowledgeDisable and errorsDisable parameters
  • Bugfix of not setting (ignored) MQTT client ID parameter

Complete changelog>>


(update instructions in manual)
Download
EasyTerm manual
Current version 2.3.0 (21.04.2025)

Changes from previous version:
  • Add description of low-power remote control usage over WIFI to WIFI Interface chapter
  • Add notes to WIFI wake and sleep commands that new WIFI modules with new FW does not need WakeIO signal.
  • Add PERSIST_SESSION parameter to ConnectMqttBroker command
  • Add QOS parameter to RemoteControlTopics command
  • Add WIFI command for debugging WIFI control
  • Add PrintScreenImage command
  • Adjusted SYStem command API to be in consistent format.
  • Fixes of errors

Complete changelog>>

Download
CmdBuilder
Current version 2.3.0 (21.04.2025)

Changes from previous version:
Features
  • Adjusted SYStem command API
  • Add QOS parameter to WIFI RemoteControlTopics
  • Add PERSIST_SESSION parameter to WIFI ConnectMqttBroker
Bugfixes
  • ---
Complete changelog>>

Win WindowsDownload
Bundled using 24.04 LinuxDownload
Bundled using 22.04 LinuxDownload
Bundled using 20.04 LinuxDownload
On demand (click for more info) LinuxDownload
Instructions
RegMaster

Changes from previous version:
- (Initial version)

(install instructions in manual)
Early Access - contact us
Videos
EasyTerm introduction video (features, cmdBuilder)
EasyTerm usage demonstration - using widgets for control and evaluation of user device
RegMaster usage - creation and manipulation of register maps of various ICs
EasyTerm as a multitool with ready to use layouts
New WIFI features highlights
Example layouts
(EasyTerm as multitool)
API compatible with FW version >= 2.3.0

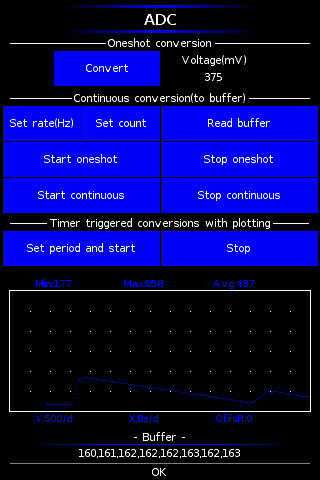

ADC layout v2
Python pkg
RAW

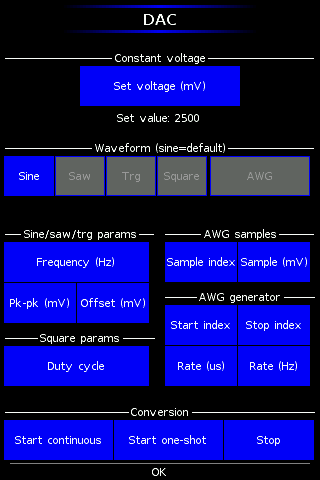

DAC layout v3
Python pkg
RAW

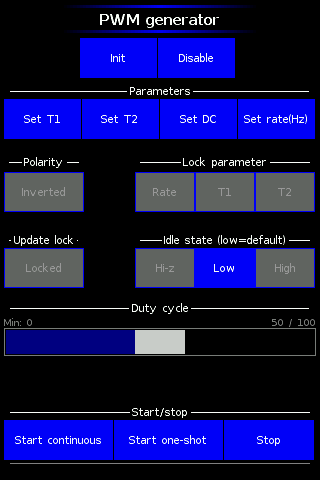

PWM layout v3
Python pkg
RAW

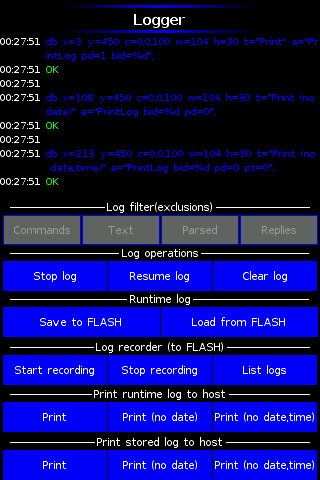

Logger layout v1
Python pkg
RAW

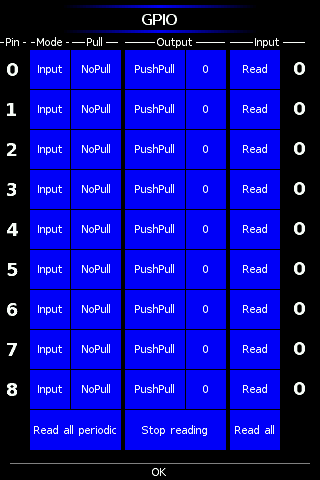

GPIO layout v5
Python pkg
RAW

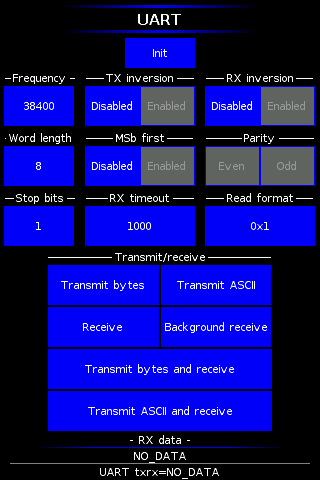

UART layout v4
Python pkg
RAW

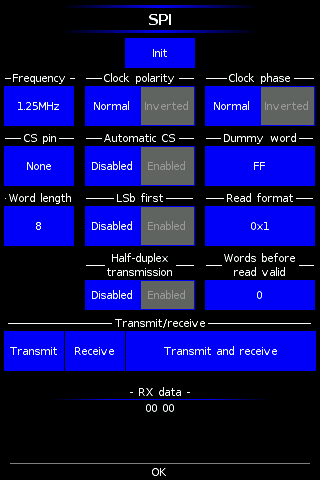

SPI layout v4
Python pkg
RAW

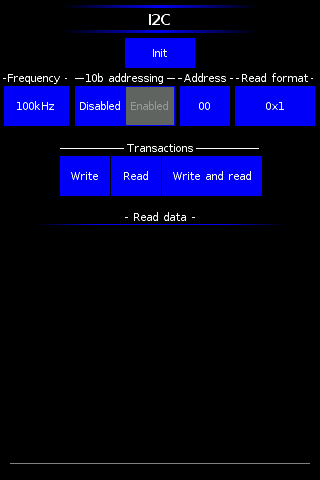

I2C layout v3
Python pkg
RAW

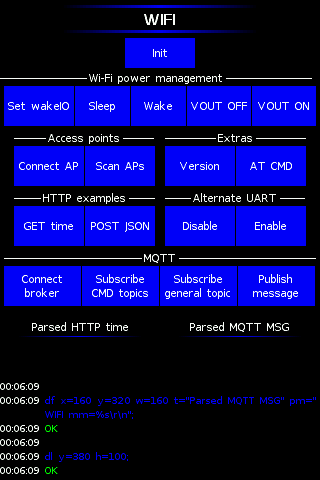

WIFI layout v2
Python pkg
RAW

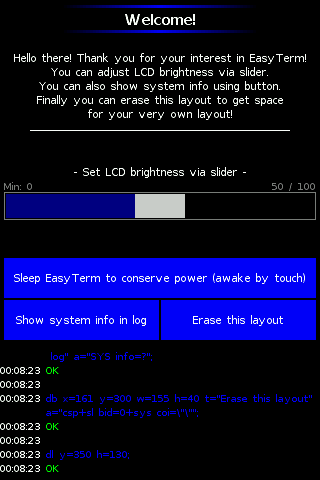

Welcome layout v2
Python pkg
RAW

All-in-one
python package
All-in-one
text package
